10kWh residential photovoltaic solution
Introducing:
Unleash the power of the sun with our 10kWh Solar Home Energy Storage Solution, designed to cater to the energy requirements of medium-sized households.
This robust system combines cutting-edge lithium-ion battery technology with generous storage capacity, offering extended backup power and enhanced energy management capabilities. Seamlessly integrate with solar panels to optimize self-consumption and reduce reliance on the grid. Stay in control with real-time monitoring, empowering you to make informed decisions and maximize energy efficiency. Embrace renewable energy and experience the versatility of our 10kWh Solar Home Energy Storage Solution.
Features
Reliable backup power
Energy-saving and cost-effective
Environmentally friendly
sustainable
Intelligent control
Parameter
Parameter
5kW Hybrid Inverter
Model: PW-INV-SPH5K
Rated Output Power: 5(kVA)
MPPT Voltage Range: 100~550V
Rated AC Frequency: 50/60HZ
Ingress Protection: IP65
Max.PV Input Power: 7.36(kW)
Rated AC Voltage: 230Vac
Battery Voltage Range: 75-400V
Operating Temperature Range: -20~60°C
Certification: CEI 0-21, VDE 4105-AR-N, VDE 0126-1-1, EN 50438, G99, G100, AS4777.2
NRS 097, EN 50549, C10/C11, UNE, UTE, NCRfG/PTPiREE , IEC 62109-1&2, IEC 62477, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4
Weight: 18(kg)
Dimensions(W*H*D): 590*405*205mm
Parameter

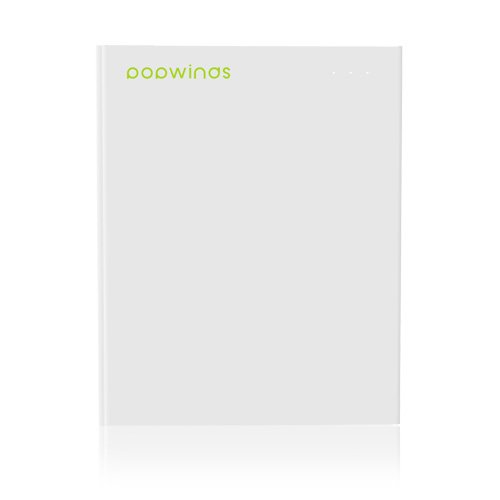

Model：PW-BAT-10.1P
Battery Type：LiFePO4
Nominal Voltage：96V
Battery Capacity：10.1kWh
Cycle life：8000 cycles
Max. Charging Current：52.5A
Max. Discharging Current：52.5A
Communication Port：CAN / RS-485 (Optional)
Parallel：1~6 in parallel
Capacity：10.1 / 20.2 / 30.3 / 40.4 / 50.5 / 60.6 kWh
Working Temperature：Charge 0~50℃ ,Discharge -10~50℃
Protection Rate：IP65
Certification：UN38.3，IEC 62619, IEC62040
Weight：90KG
Dimension：590x750x205mm
Warranty：5 years
